Laser Engraving, Tu, Vuam thiab Marking Machine
Tau txais ib nqe lus
Cov khoom
Portable Mini Fiber Laser Npav Tshuab Rau Roj Teeb lossis Plug-in Styles
Cov ntsiab lus muag khoom
1. Cov lus tuaj yeem xaiv raws li cov neeg siv khoom xav tau, xws li Askiv, Fabkis, German, thiab lwm yam
2. Lub teeb nyhav, txog 12 kg net hnyav
3.Nws muaj roj teeb thiab plug-in qauv rau cov neeg siv khoom xaiv.Lub roj teeb qauv muaj 20-watt standby lub sij hawm ntawm 6 teev thiab hardcore roj teeb lub neej ntawm 3.5 teev
4. 0.01mm marking preview precision, 0.1mm laser luam ntawv qhov tob
5. Peb cov channel nthuav qhia tuaj yeem xa cov khoom siv roj teeb nrog MSD daim ntawv pov thawj

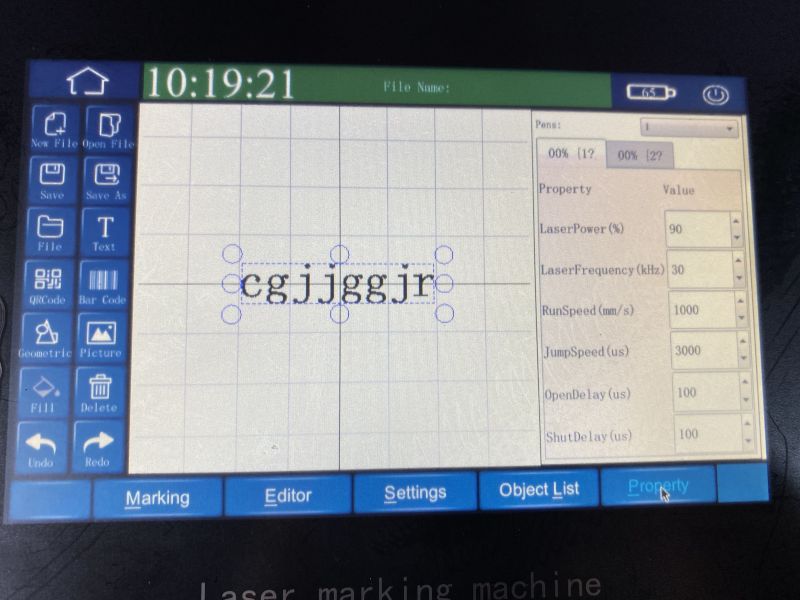

Kev ua haujlwm system

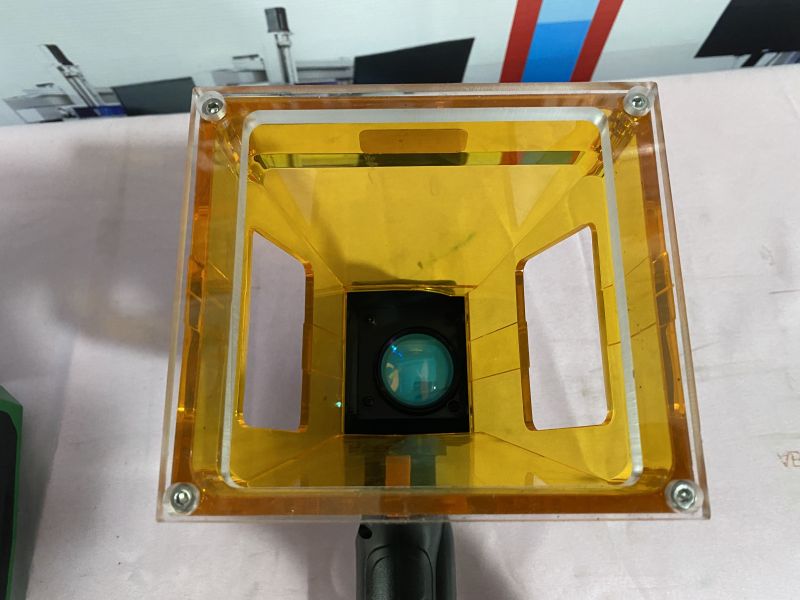

Laser qhov chaw

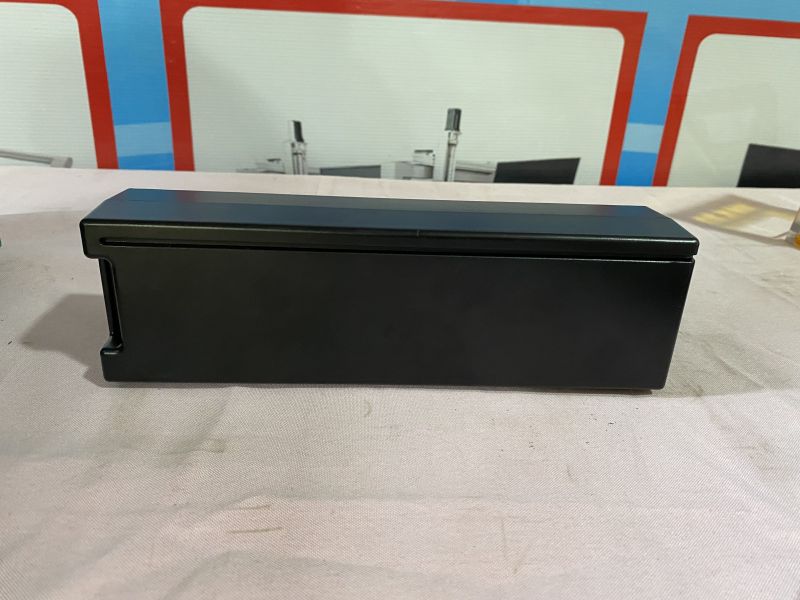

Roj teeb

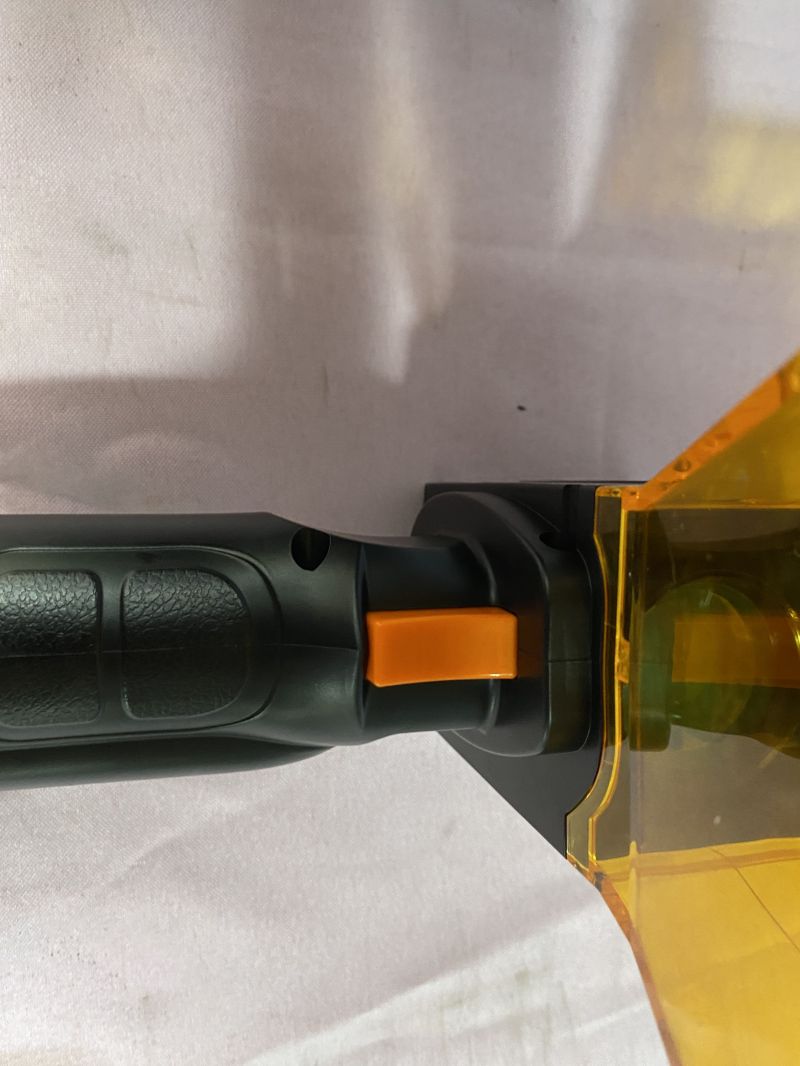

Khawm cov ntsiab lus
Specification
| Specification | WL-PLC-20 | WL-PLC-30 |
| Case Material | Engineering yas / txau ntawv hlau | |
| Laser hom | fiber laser qhov chaw | |
| Tso zis zog | 20 wb | 30 wm |
| Laser wavelegth | 7000mm / s | |
| Kev kos duab | high-precision ob-dmensional scanning txoj kev | |
| Kev khiav haujlwm | Linux | |
| Txias qhov system | Cua txias | |
| Hom kab kos | Dot matrix thiab vector | |
| Marking ceev | 650 cim (qhov tshwj xeeb ceev yog cuam tshuam nrog cov khoom siv thiab cov ntawv luam tawm) | |
| Fonts | simplified Suav, tsoos suav, Askiv, Kauslim, Lavxias, Cov lej Arabic thiab lwm yam qauv font tsev qiv ntawv | |
| Barcode / QR code | CODE39.CODE128,CODE126,EAN13,PAF417,01CODE | |
| Hwj chim | 220 V | |
| NW | 12kg ua | |
| Tes tuav | 241.5mm * 79mm * 151mm | |
| Tswj lub thawv | 320mm * 170mm * 270mm | |
Cov neeg siv khoom customized
Tam sim no, feem ntau ntawm cov khoom siv hauv kev txiav txim cov khoom no yog cov log tsheb, uas tuaj yeem yooj yim cim rau ntawm lub log tsheb.
Cov log tsheb: maus taus, tsheb, tsheb, thiab lwm yam. Cov nyhuv yog ceev heev, thiab cov nyhuv zoo;
Nyob rau tib lub sijhawm, raws li tus neeg siv khoom xav tau ntawm tus nqi ntawm lub tshuab, peb muaj lub log fiber ntau portable, thiab kuj tsis muaj log style; rau lub log style, peb yuav xa cov neeg siv khoom lub laub dawb, yog li ntawd tuaj yeem ua tau. rub ib ncig ntawm qhov chaw cim, yooj yim kom paub ceev ceev, txuag lub sijhawm.
Yog tias koj txaus siab rau lub tshuab no, thov hu rau peb ntawm whatsapp: 8618983749701
email : sales02@drawell-wellable.com
